ERGA HiC Hap1Hap2 Scaffolding+QC YaHS v2309 (WF4) Version 1
View on GitHub
Download RO Crate

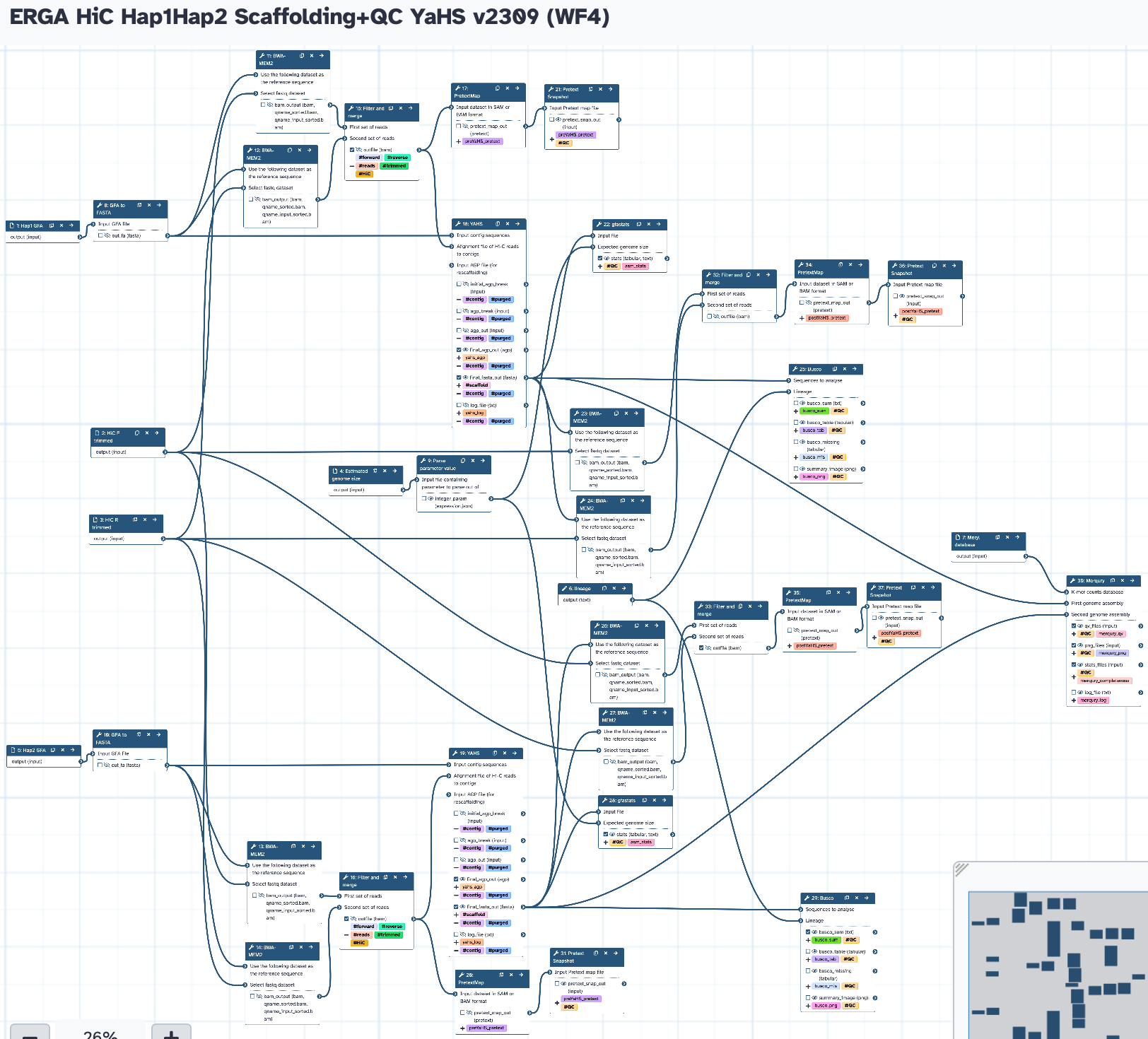

Run on usegalaxy.euThe workflow takes trimmed HiC forward and reverse reads, and Hap1/Hap2 assemblies to produce Hap1 and Hap2 scaffolded assemblies using YaHS. It also runs all the QC analyses (gfastats, BUSCO, Merqury and Pretext).
Inputs
| ID | Name | Description | Type |
|---|---|---|---|
| Estimated genome size | Estimated genome size | n/a |
|
| Hap1 GFA | Hap1 GFA | gfa assembly file to scaffold |
|
| Hap2 GFA | Hap2 GFA | gfa assembly file to scaffold |
|
| HiC F trimmed | HiC F trimmed | HiC forward reads (already trimmed) |
|
| HiC R trimmed | HiC R trimmed | HiC reverse reads (already trimmed) |
|
| Meryl database | Meryl database | n/a |
|
| lineage | lineage | lineage for BUSCO, e.g.: arthropoda_odb10, vertebrata_odb10, mammalia_odb10, aves_odb10, tetrapoda_odb10 ... |
|
Steps
| ID | Name | Description |
|---|---|---|
| 7 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 8 | Parse parameter value | param_value_from_file |
| 9 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 10 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 11 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 12 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 13 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 14 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
| 15 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
| 16 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
| 17 | YAHS | toolshed.g2.bx.psu.edu/repos/iuc/yahs/yahs/1.2a.2+galaxy1 |
| 18 | YAHS | toolshed.g2.bx.psu.edu/repos/iuc/yahs/yahs/1.2a.2+galaxy1 |
| 19 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
| 20 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
| 21 | gfastats | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
| 22 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 23 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 24 | Busco | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
| 25 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 26 | BWA-MEM2 | toolshed.g2.bx.psu.edu/repos/iuc/bwa_mem2/bwa_mem2/2.2.1+galaxy1 |
| 27 | gfastats | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.6+galaxy0 |
| 28 | Busco | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.4.6+galaxy0 |
| 29 | Merqury | toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy3 |
| 30 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
| 31 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
| 32 | Filter and merge | toolshed.g2.bx.psu.edu/repos/iuc/bellerophon/bellerophon/1.0+galaxy1 |
| 33 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
| 34 | PretextMap | toolshed.g2.bx.psu.edu/repos/iuc/pretext_map/pretext_map/0.1.9+galaxy0 |
| 35 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
| 36 | Pretext Snapshot | toolshed.g2.bx.psu.edu/repos/iuc/pretext_snapshot/pretext_snapshot/0.0.3+galaxy1 |
Outputs
| ID | Name | Description | Type |
|---|---|---|---|
| _anonymous_output_1 | _anonymous_output_1 | n/a |
|
| _anonymous_output_2 | _anonymous_output_2 | n/a |
|
| _anonymous_output_3 | _anonymous_output_3 | n/a |
|
| _anonymous_output_4 | _anonymous_output_4 | n/a |
|
| _anonymous_output_5 | _anonymous_output_5 | n/a |
|
| _anonymous_output_6 | _anonymous_output_6 | n/a |
|
| _anonymous_output_7 | _anonymous_output_7 | n/a |
|
| _anonymous_output_8 | _anonymous_output_8 | n/a |
|
| _anonymous_output_9 | _anonymous_output_9 | n/a |
|
| _anonymous_output_10 | _anonymous_output_10 | n/a |
|
| _anonymous_output_11 | _anonymous_output_11 | n/a |
|
| _anonymous_output_12 | _anonymous_output_12 | n/a |
|
| _anonymous_output_13 | _anonymous_output_13 | n/a |
|
Version History
Version 1 (earliest) Created 11th Oct 2023 at 16:06 by Diego De Panis
Initial commit
Frozen
Version-1f14e012
Creators and SubmitterViews: 1409
Created: 11th Oct 2023 at 16:06
Last updated: 31st Oct 2023 at 12:45
Tags AttributionsNone
