workflow-2
Version 1

Workflow Type: Galaxy

Domestication of new parts before cloning simulation

Add new parts to your sequences before the cloning simulation and interact with the database.

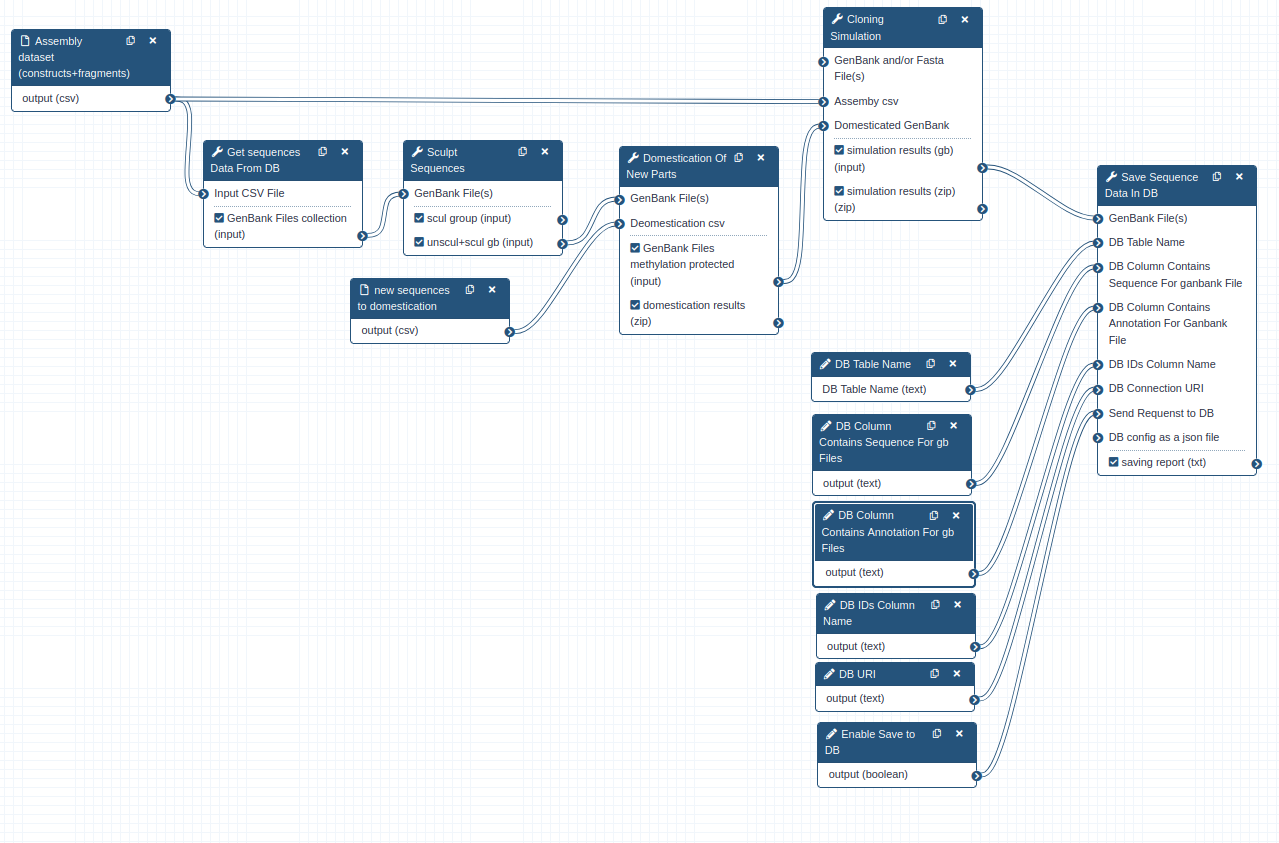

steps:

input: csv file (without header) : The CSV file should contain the constraints line by line in the first column, along with their associated fragments on each line. This data will be passed to the seq_from_DB tool.

seq_from_DB

  1. Extract the fragments associated with each constraint from the CSV file.
  2. Check if all fragments are present in the database. If any fragment is missing, an error will be raised --> workflow-0)
  3. If all fragments are present in the database, GenBank files for each fragment will be generated and passed to the sculpt_sequences tool.

sculpt_sequences

  1. Set the constraints for the sculpt.
  2. Generate sculpted and unsculpted sequences and pass all GenBank files to domestication_of_new_parts tool.

domestication_of_new_parts

  1. Import new parts from a CSV file.
  2. Perform domestication of the new parts in the sequences, generate reports, and create domesticated GenBank files and pass them to seq_to_db tool.

seq_to_db

  1. Domesticated GenBank files can be saved to the database, depending on the user's choice.

Inputs

ID Name Description Type
Assembly dataset (constructs+fragments) #main/Assembly dataset (constructs+fragments) Without Header
  • File
DB Column Contains Annotation For gb Files #main/DB Column Contains Annotation For gb Files n/a
  • string
DB Column Contains Sequence For gb Files #main/DB Column Contains Sequence For gb Files n/a
  • string
DB IDs Column Name #main/DB IDs Column Name n/a
  • string
DB Table Name #main/DB Table Name n/a
  • string
DB URI #main/DB URI n/a
  • string
Enable Save to DB #main/Enable Save to DB n/a
  • boolean
new sequences to domestication #main/new sequences to domestication n/a
  • File

Steps

ID Name Description
8 Get sequences Data From DB toolshed.g2.bx.psu.edu/repos/tduigou/seq_from_db/seq_form_db/0.1.0+galaxy0
9 Sculpt Sequences toolshed.g2.bx.psu.edu/repos/tduigou/sculpt_sequences/sculpt_sequences/0.1.0+galaxy0
10 Domestication Of New Parts toolshed.g2.bx.psu.edu/repos/tduigou/domestication_of_new_parts/domestication_of_new_parts/0.1.0+galaxy0
11 Cloning Simulation toolshed.g2.bx.psu.edu/repos/tduigou/cloning_simulation/cloning_simulation/0.1.0+galaxy0
12 Save Sequence Data In DB toolshed.g2.bx.psu.edu/repos/tduigou/seq_to_db/seq_to_db/0.2.0+galaxy1

Outputs

ID Name Description Type
GenBank Files collection #main/GenBank Files collection n/a
  • File
_anonymous_output_1 #main/_anonymous_output_1 n/a
  • File
domestication results #main/domestication results n/a
  • File
saving report #main/saving report n/a
  • File
scul group #main/scul group n/a
  • File
simulation results (gb) #main/simulation results (gb) n/a
  • File
simulation results (zip) #main/simulation results (zip) n/a
  • File
unscul+scul gb #main/unscul+scul gb n/a
  • File
